Mounting the tags

When mounting your tag, make sure that the UWB antenna of the tag is facing upwards for optimal positioning accuracy.

Industrial Tag

The Industrial Tags can be mounted to any asset users want to track, ranging from pallets
over forklifts to equipment. To make it easy to attach tags, the tags come with different
options:

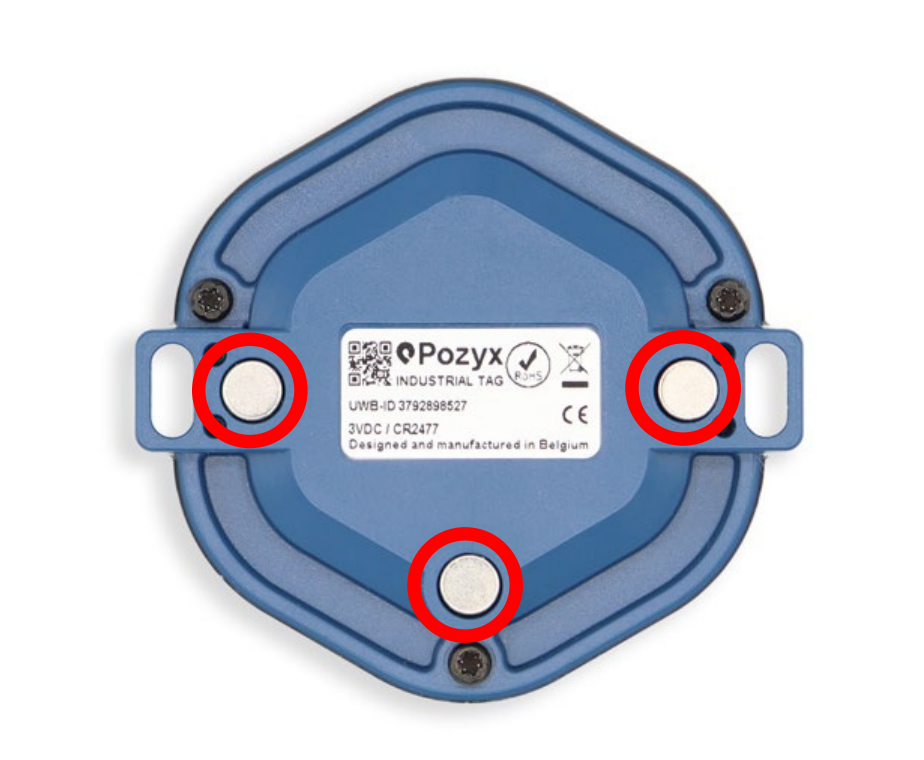

• The tags can be mounted to metallic assets with the magnets on the back,
  highlighted below in red:

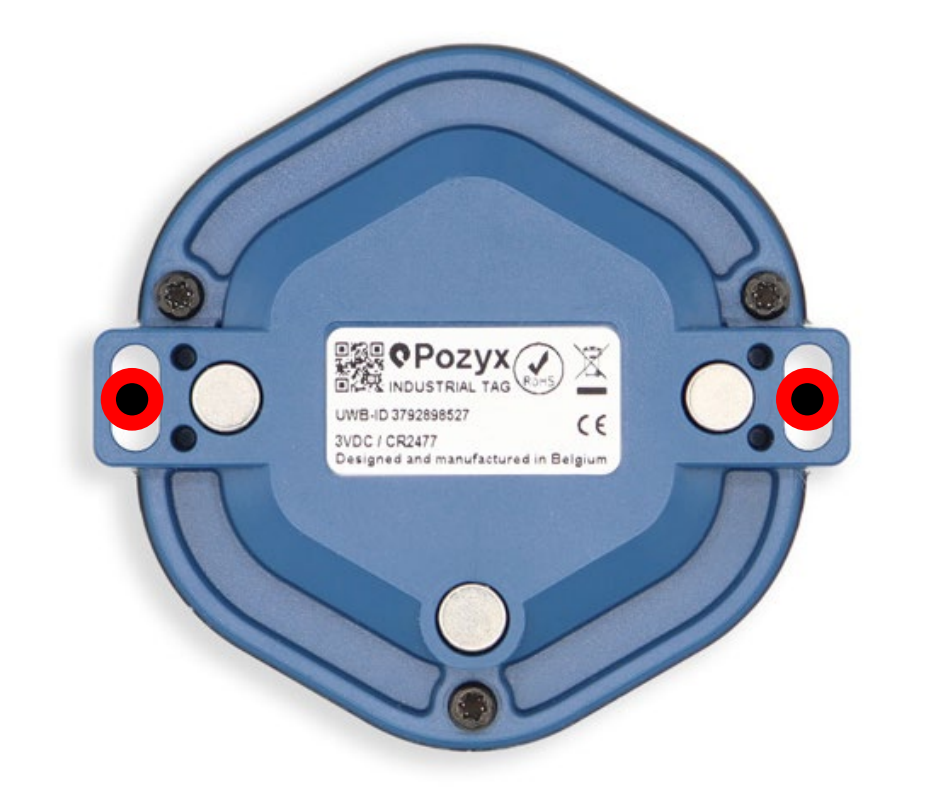

• The Tags can also be mounted with 2 x M4 screws using the eyelets on either side:

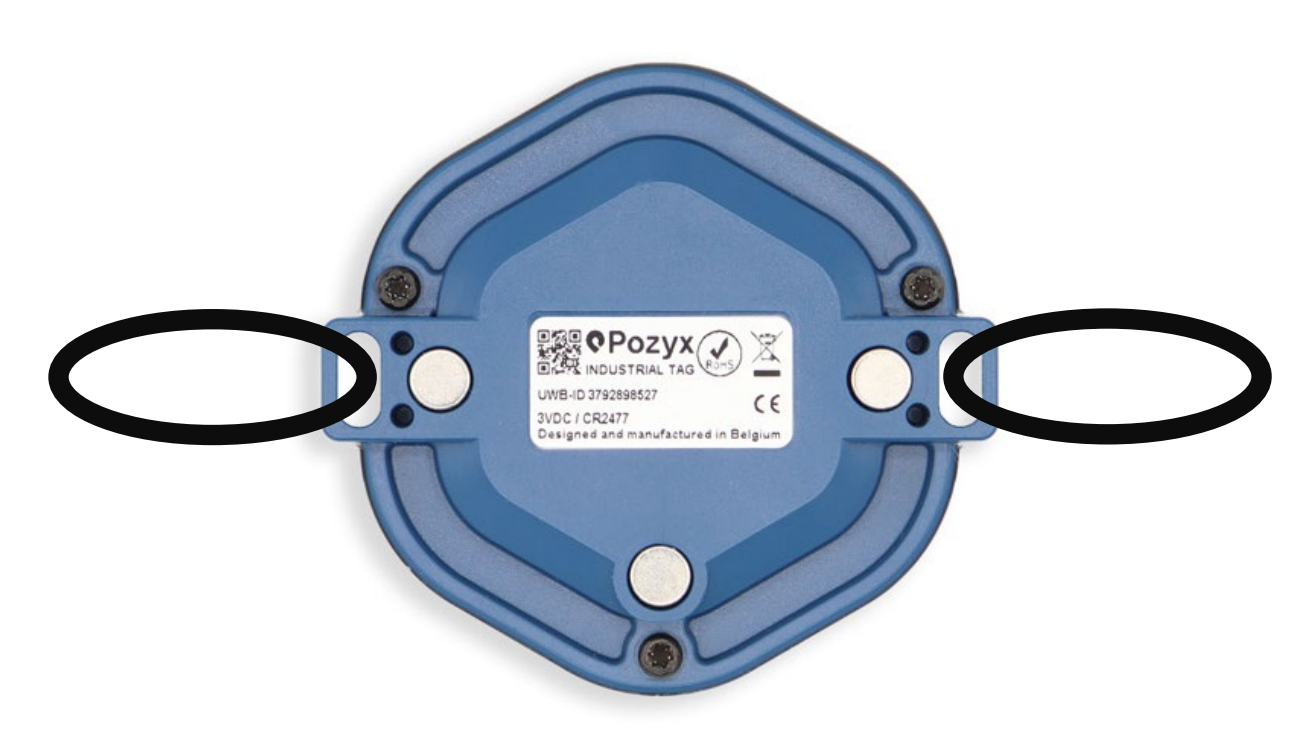

• Alternatively, the Industrial Tag can be attached to anything using tie wraps, looping
  though the eyelets:
